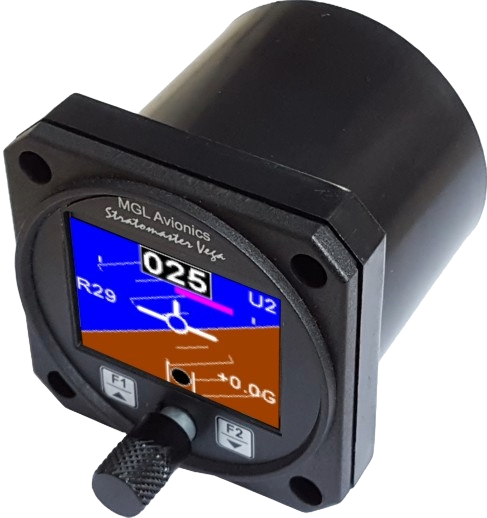

Vega AHRS-1 / MAG-1

The MGL Blaze AHRS-1 / MAG-1 is a 2¼”” (57mm) sunlight readable color display instrument providing a display for an artificial horizon reference system (AHRS), an advanced digital compass, or both depending on which sensor packages is connected.

The AHRS-1 / MAG-1 can be setup to display the following:

• Compass with optional slip indicator (requires MGL Avionics SP-6 sensor package)
• Horizon with optional slip, turn indicator & G-Force (requires the MGL Avionics SP-7 if using the AHRS-1)
• Turn and bank indicator (requires the MGL Avionics SP-7)
• Combined compass and horizon display with bank indicator, optional slip indicator & G-Force (requires MGL Avionics SP6 & the Avionics SP-7)

Documents

AHRS-1 / MAG-1 Operating Manual

Vega Dimension Drawing

Vega Firmware Revisions

Downloads

AHRS-1 / MAG-1 Firmware v1.14

Vega Firmware Tools
