UMA N1EUxxxx(M) Fuel Pressure Sender

Solid-state pressure transducer with 0.5-4.5 volt linear output and 0.5% tolerance. Modified specifically for MGL equipment "(M)".

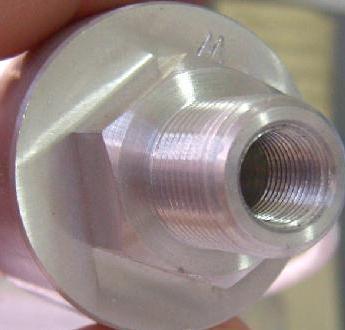

Aluminum body with internal 1/8 NPT female thread for fluid fitting.

External 5/8-18 thread for mounting.

Works with MGL equipment such as Blaze/Vega EMS, TP, FF, Flight, and RDAC models.

Available in a 4 pressure ranges, 0-7 psi, 0-35 psi, 0-70 psi, and 0-100 psi and single input or differential input variants:

• 0-7 psi single for carbureted Rotax - N1EU07G(M)
• 0-7 psi differential for carbureted Rotax - N1EU07D(M)
• 0-35 psi single for carbureted Lycoming - N1EU35G(M)
• 0-70 psi differential for fuel injected Rotax iS - N1EU70D(M)
• 0-100 psi single for fuel injected Lycoming - N1EU100G(M)


Installation Notes

• Do not mount in a location where the temperature exceeds 250F
• Requires 12 volt power supply
• For RDAC connection, FuelP PU must be OFF
• For Blaze/Vega singles, use Pressure Input

• Your setup should reflect the correct Probe Type (linear, voltage, 0.5-4.5V), correct input Location, and correct Pressure Range

Wiring

• Red (or Orange/White) = +12 V Power
• Black (or Blue/White) and Shield = Ground (RDAC or instrument)
• White = Signal (to RDAC / instrument)
