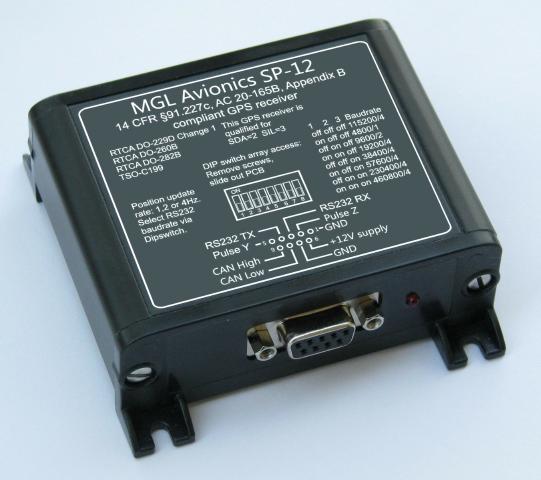

The SP-12 is a GPS source that provides a simple and low cost solution to the FAA 2020 mandate.
14 CFR §91.227c, AC 20-165B, Appendix B compliant
TSO-C199 TABS GPS qualified for SIL 3 and SDA 2 for ADS-B mandate airspace
It provides the standard Micro-i NMEA output on RS232 but adds user selectable baud rates (the default is the standard 115200 baud used by the Micro-i module).
In addition it packs the NMEA data from the Micro-i onto the CAN bus for direct use by an MGL EFIS or compatible transponder without the need for further wiring. (Only the Trig transponder via the MGL Avionics interface is compatible at this point).
The MGL Avionics T-16 transponder is of course also supported (this device is currently in development).
