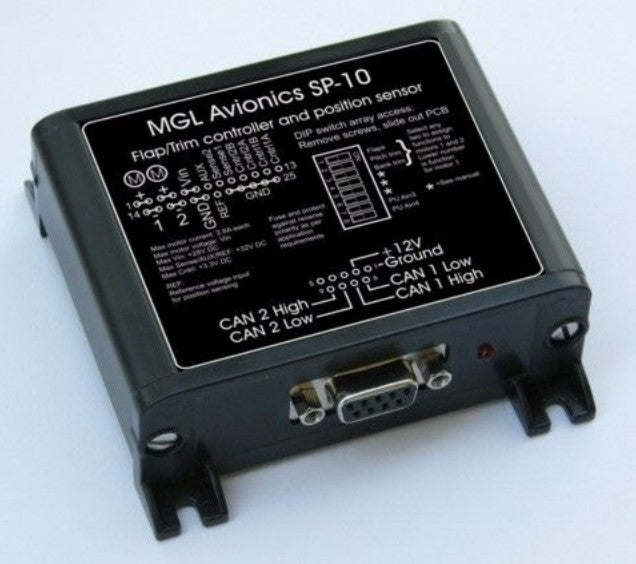

The SP-10 Flap and Trim controller is used with MGL iEFIS systems. It can also be used as a stand-alone 4 position flap controller.
The SP-10 provides two independent H-bridge motor controls, each capable of delivering 2.8A of DC current. If the SP-10 is used in single motor mode, the SP-10 can deliver 5A of current to the motor.
The SP-10 is used primarily as a 4 position flap controller, a pitch trim controller and a roll trim controller. Either two functions or a single function may be selected by means of an internal DIP switch array.
The SP-10 provides two position monitoring functions. These are used as flap or trim motor position monitoring for display on an EFIS or compatible system.
For the flap controller function the position feedback is used to position the flaps in one of four positions (Flaps up, flaps mid 1, flaps mid 2 and flaps down).
It is possible to connect the SP-10 to two independent external control sources such as an EFIS and a panel mount controller for example. Two independent CAN bus interfaces are used for this.
Up to 4 SP-10 units may be connected to a host system via CAN bus, but in practice a maximum of three will be used as three functions can be defined.
