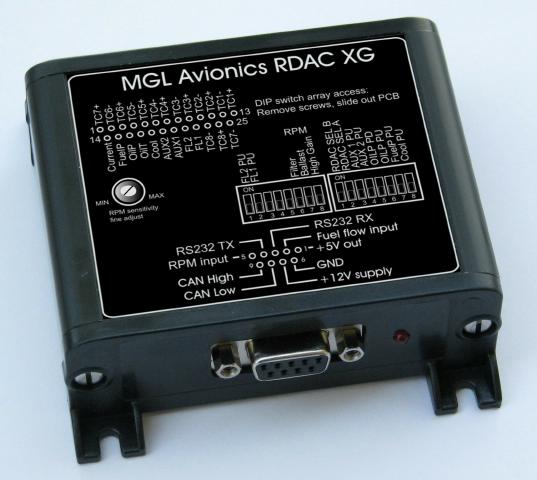

RDAC XGis a compact version of the RDAC XF engine data acquisition module and can be used used with all iEFIS instruments as well as an option with some Vega and Blaze singles.
The RDAC XG transmits engine data via CAN bus.
Pre-wired color coded harnesses are included in the price.
The RDAC XG is fully compatible and similar to the larger RDAC XF subject to the following differences:
8 Channels Thermocouple system, for up to 4 CHT and 4 EGT (vs 12 channels in the RDAC XF)
1 RPM input (vs 2 in the RDAC XF)
1 Fuel flow sender input (vs 2 in the RDAC XF), so cannot handle differential flow in a fuel return system.
No manifold pressure sensor option
The RDAC XF uses screw terminals for connection of senders while the RDAC XG uses DB9 and DB25 connectors with supplied cables.
