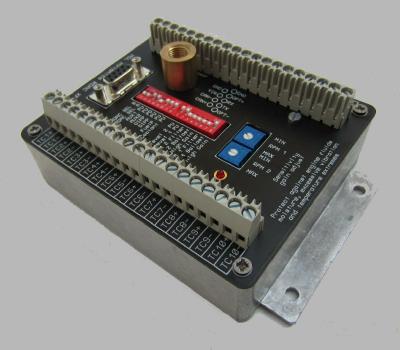

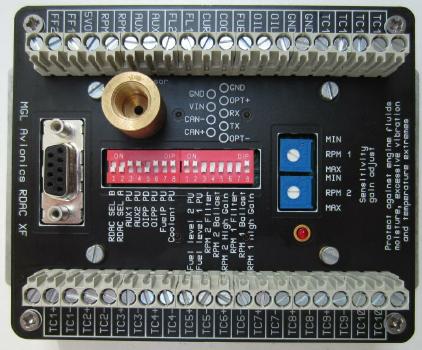

The RDAC XF is the engine data acquisition module used with Xtreme and iEFIS instruments as well as legacy discontinued MGL panels.
Available in two versions XF and XF-MAP, this RDAC XF does not include a manifold pressure sender.
The RDAC XF provides an optically isolated communications interface compatible with all existing MGL EFIS systems. In addition, it provides a CAN bus interface used with iEFIS systems. A RS232 interface is also provided, allowing thrid-party (OEM) use of the RDAC system.
The RDAC XF provides up to 12 channels for thermocouple sensors (EGT,CHT), channels dedicated to NTC temperature, and other probe types, oil and fuel pressure, fuel levels, dual fuel flow and dual RPM, manifold or boost pressure (RDAC XF MAP only)
The RDAC XF is quick and easy to install thanks to our well proven use of vibration proof moving cage wire terminals. These terminals allow quick attachement of wires and are very useful during typical sensor fault finding.
The RDAC XF replaces the long running RDAC XB, XD and XE versions with a more flexible, yet sturdy design in a strong, cast aluminum bulkhead mount device.
