Unlike its other iEFIS siblings, the MGL MX1 is based on the latest developments in microcontroller technology. It packs most of the functionality of a traditional iEFIS system into a lower cost solution that requires fewer components resulting directly in potentially higher robustness and reliability in challenging environments.

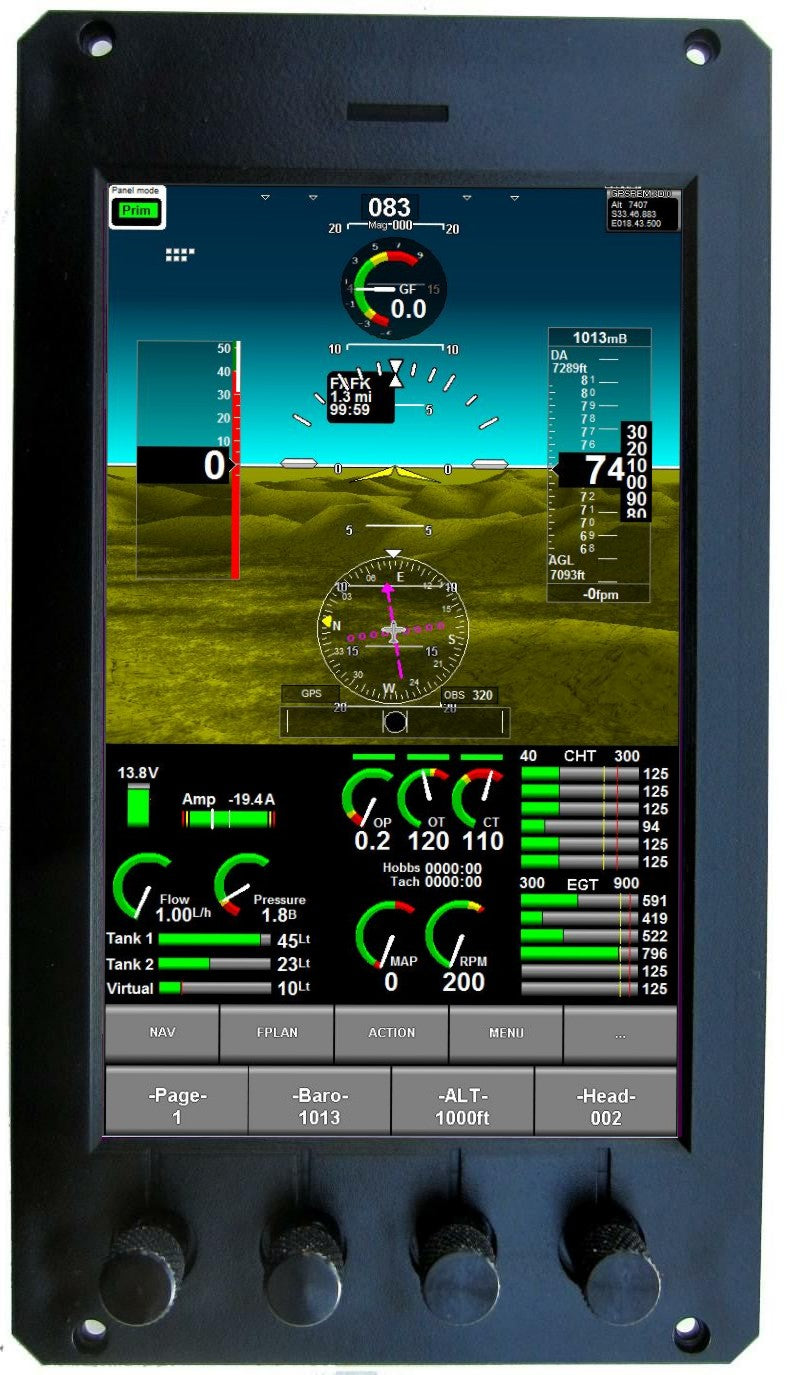

The MX1 shines as a low cost single panel solution for many applications (portrait or landscape mode).

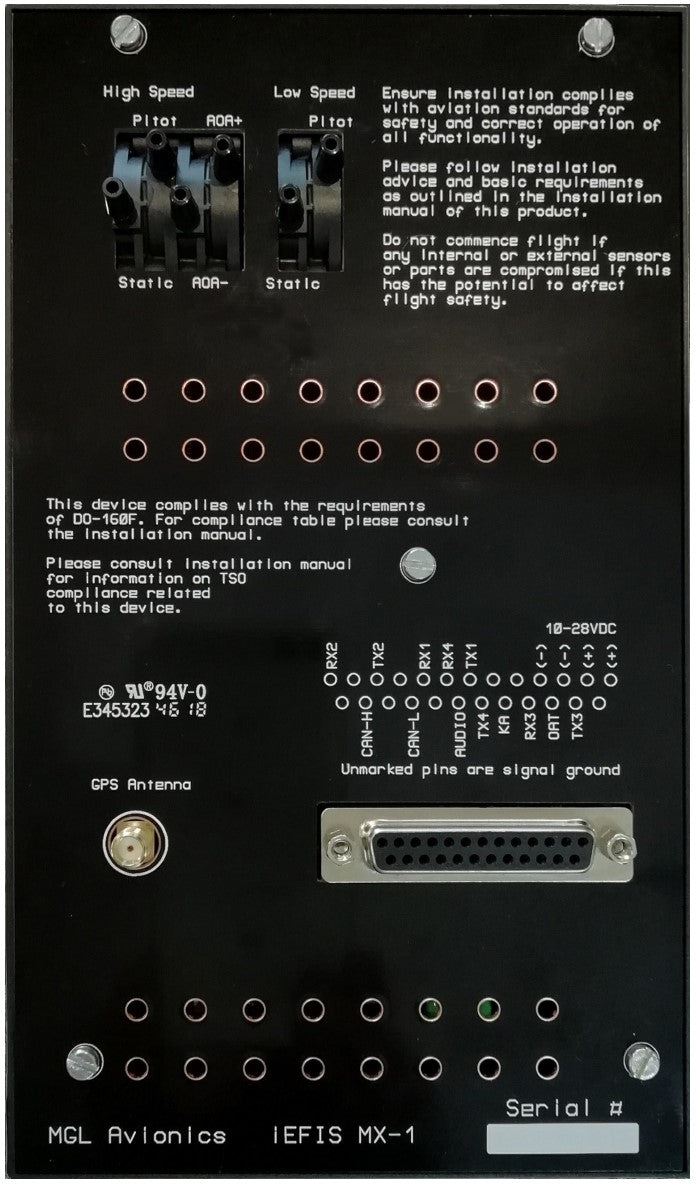

Simple installation and wiring up, built in, newly developed AHRS, altimeter to 40.000ft, dual airspeed sensors covering the range from just 20mph to mach 1 at sea level, built in AOA sensor, audio voice annunciation and sound generators for AOA and Vario, OAT sensor and built in WAAS GPS qualified to TSO-C199 SIL/SDA of 1/1. CAN bus and 4 internal RS232 ports (expandable to 8 ports). Support for all MGL devices and peripherals and several third party products. Analog and digital inputs and outputs with the iEFIS Expander.
Full iEFIS autopilot (up to three axis control), interfaces to transponders, COM and NAV radios as well as the MGL A16 intercom system.
User definable custom screens just the way you can do with any other iEFIS system.
iEFIS Lite contains an internal AHRS, but an external SP-7 or SP-9 AHRS is highly recommended for best results. An SP-6 or SP-9 is required for magnetic heading.
