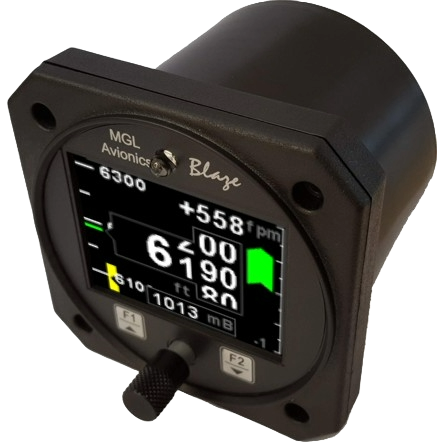

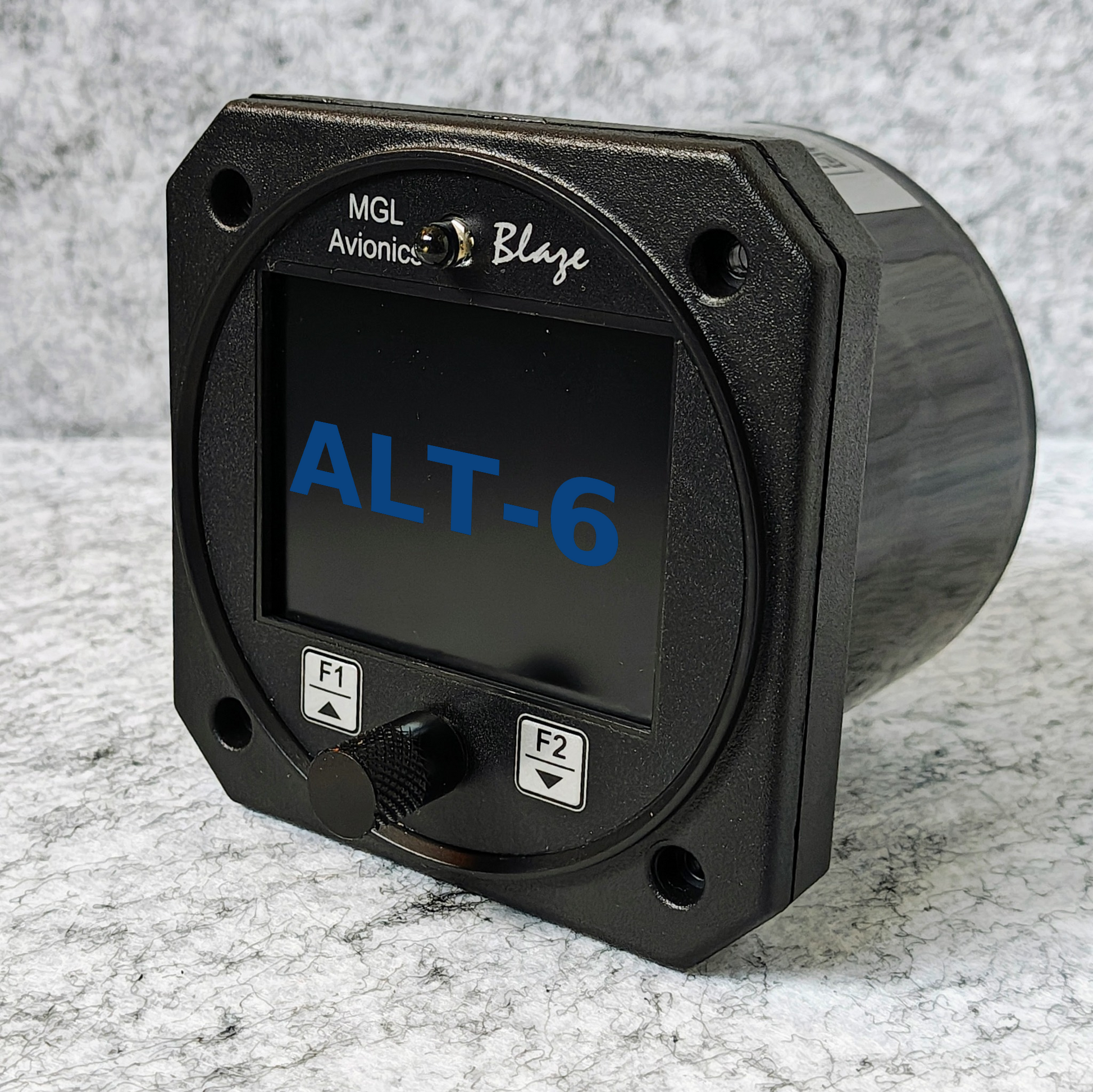

The MGL Blaze ALT-6 is a 3⅛” (80mm) sunlight readable encoding altimeter and a wide range vertical speed indicator.
The altimeter contains an internal high accuracy 24 bit digital altitude sensor which calculates altitude from -1500 ft up to a maximum of +35000 ft. The ALT-6 outputs various formatted RS232 serial data protocols compatible with serial input transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc. The altimeter can display altitude in feet or meters and local pressure can be set in millibars or inches of mercury.
The VSI indicator can be displayed in either feet/minute (ft/min) or meters/second (m/s). The VSI can be calibrated by the user once the instrument has been installed in the aircraft.
The ALT-6 also features a user settable altitude bug and an encoder test function. Please see the Blaze ALT-7 if you require a parallel Gillham code interface. Alternatively the ALT-6 provides a parallel Gillham code interface when used in conjunction with the MGL Avionics CNV-ALT. The ALT-6 can also be used to measure relative or deviation altitude and it has a facility for the pilot to enter a reference altitude and deviation band.
