Blaze AHRS-2 / MAG-2

Description

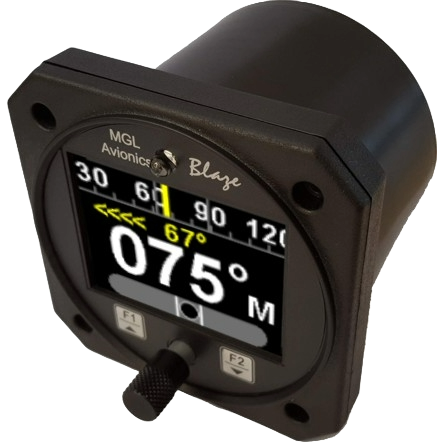

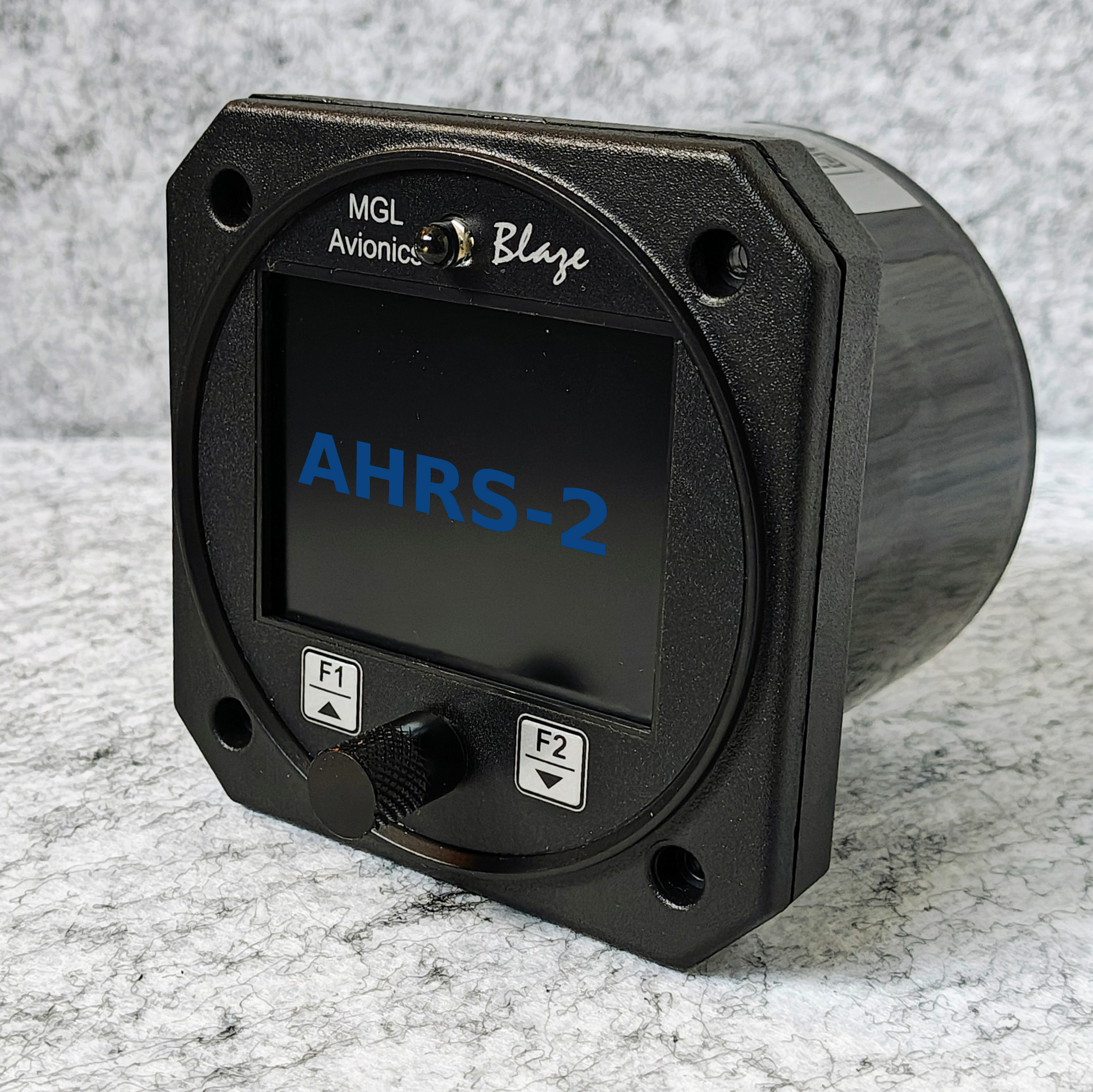

The MGL Blaze AHRS-2 / MAG-2 is a 3⅛” (80mm) sunlight readable color display instrument providing a display for an artificial horizon reference system (AHRS), an advanced digital compass, or both depending on which sensor packages is connected.

The AHRS-2 / MAG-2 can be setup to display the following:

• Compass with optional slip indicator (requires MGL Avionics SP-6 sensor package)
• Horizon with optional slip, turn indicator & G-Force (requires the MGL Avionics SP-7 if using the AHRS-2)
• Turn and bank indicator (requires the MGL Avionics SP-7)
• Combined compass and horizon display with bank indicator, optional slip indicator & G-Force (requires MGL Avionics SP-6 sensor & the Avionics SP-7)

Documents

AHRS-2 / MAG-2 Operating Manual

Blaze Dimension Drawing

Blaze Firmware Revisions

Downloads

AHRS-2 / MAG-2 Firmware v1.11

Blaze Firmware Tools
