Autopilot Servo

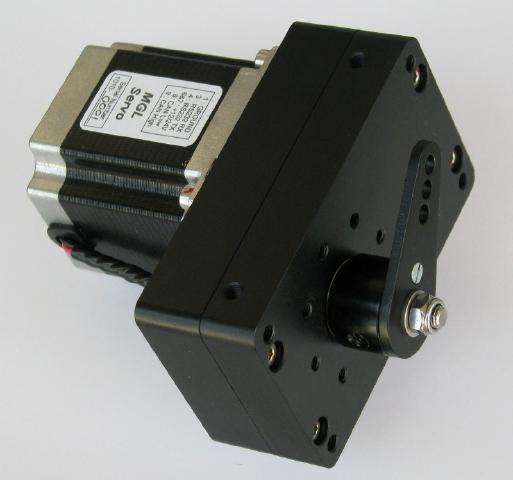

The MGL Servo is a stepper motor based system providing a torque of up to 4.8Nm (with shaft rotating).

The servo is not restricted to any particular range of the output arm movement and can be used at any angle in this regard.

This servo is able to measure the external force acting on the output shaft for use with trim indication or automatic trim systems.

External control is either via a multi-drop RS232 link or a CAN interface at 250KBaud.

Multiple, threaded mounting points are available on the face and sides of the servo for ease of installation.

The MGL Servo can be used with iEFIS and the XTreme EFIS autopilot function as well as legacy Enigma, Voyager, and Odyssey systems.

Accessories

Servo Link Kit (30cm)

Servo Short Link (37 - 55mm)

Capstan Kit

Resources

Autopilot Servo User and Installation Manual

Autopilot Manual

Autopilot Servo Communication Protocol
